Div 03 · Concrete

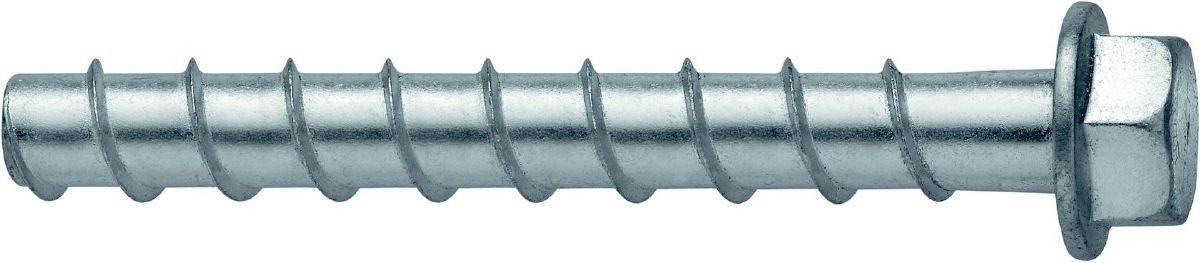

Kwik HUS-EZ Screw Anchor
H
Hilti · KH-EZ (1/4, 3/8, 1/2, 5/8 and 3/4 in dia., carbon steel hex head)
A carbon-steel screw anchor that cuts its own thread in a predrilled hole in concrete or grout-filled CMU, so it can be installed and, unlike an expansion anchor, removed without leaving an expanded sleeve behind.
✓ Verified
Specs on this page were checked against Hilti KH-EZ Screw Anchor product page (www.hilti.com), retrieved 2026-09-03 on .
Specifications
| Diameter | 1/2" |
| Length | 4" |
| Nominal Embedment | 2-1/4" or 3" at 4" length (1/2" dia: 2-1/4, 3, 4-1/4, 5-1/2, 6-1/4) |
| Design Basis | Strength design per ACI 318 Ch. 17 — see ESR-3027 |
Certifications & Standards
ICC-ES ESR-3027
Sustainability
No sustainability metrics on file for this product.
Code sections
Sections of the model codes that address this type of product. A link opens the code library at the chapter that holds the section. It points to the code; it does not say this model meets it.
- IBC 1901.3
Applies to Code Sections
Code sections where this product or product category is relevant. Click through to the viewer for full text and commentary.
ACI 318 Ch. 17
